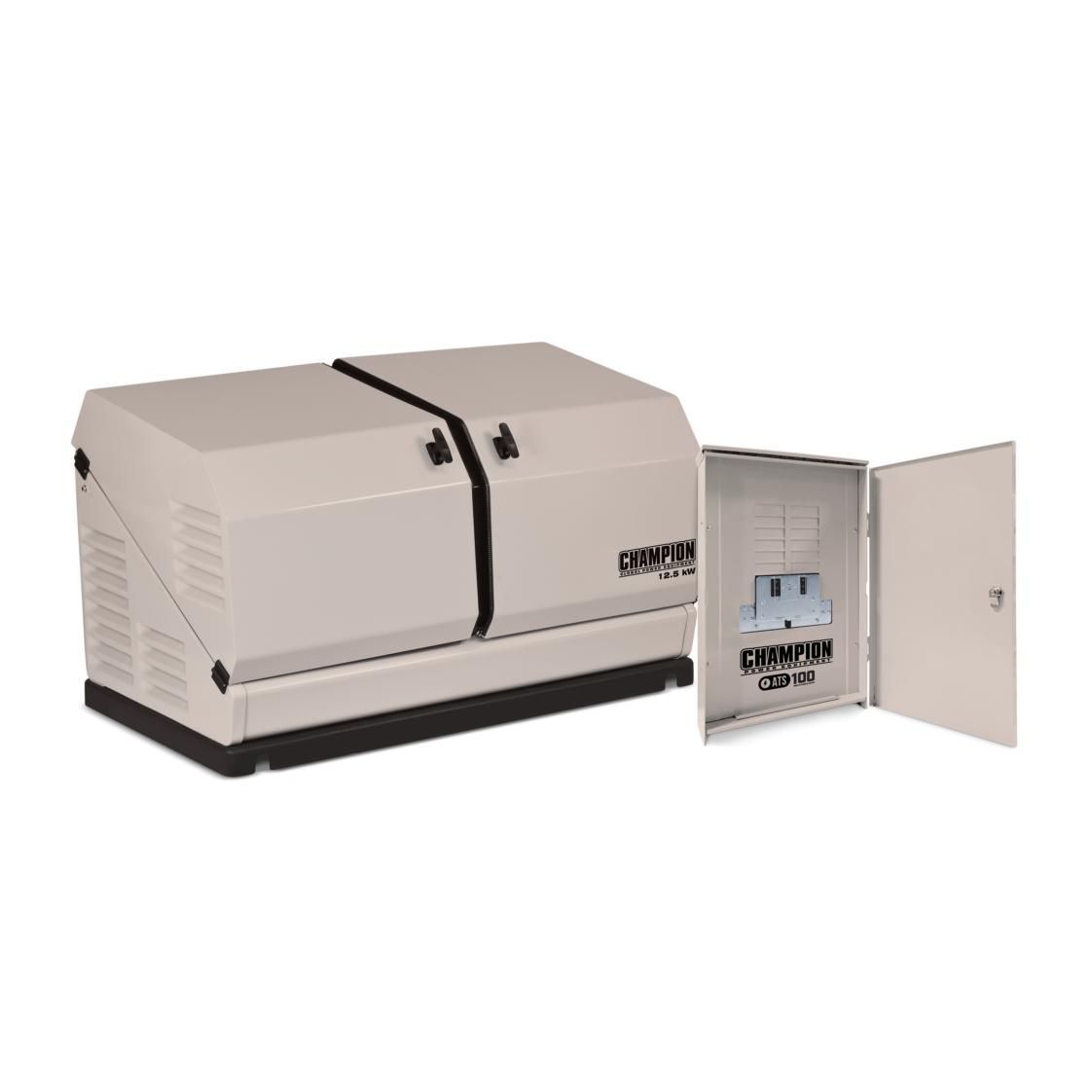

12.5 kW Select Circuit Home Standby Generator and 100A Switch/Model #100179

12.5 kW Select Circuit Home Standby Generator and 100A Switch/Model #100179

• 12500w Propane
• 1100w Natural Gas
• Steel Enclosure
• 717cc Engine

Champion’s 12.5-kW Home Standby Generator system provides 24/7 power for your home and peace of mind for you. This fully automatic unit is the quietest-in-class and never needs refueling. Designed to operate in sub-zero temperatures, this unit has a 10-year limited warranty.

Description

The Champion Power Equipment 100179 12.5-kW Home Standby Generator with a 100A Select Circuit Outdoor-Rated Automatic Transfer Switch is The Simple Solution™ to a power outage. Enjoy peace of mind while ensuring security and convenience for your family during an emergency.

The generator starts automatically when the power goes out and returns to standby when power is restored. The sub-zero 24V starting system is designed to operate in extreme temperatures down to -22 °F with no warming kit necessary.

You’ll have the starting power you need during an emergency since the onboard battery charger maintains the charge at all times, plus, since the generator is connected to your propane or natural gas system, it never needs refueling. This unit also performs weekly self-diagnostic tests.

An all-weather, composite mounting pad is included for easy installation, plus the steel enclosure protects your generator from the elements. The Select Circuit automatic transfer switch operates a 100 amp, 16 circuit load (12 space sub panel allows up to 4 tandem breakers). It is ideal for homeowners who want to power select circuit during a power outage as opposed to the whole house. It is housed in a NEMA 3R rated enclosure for outdoor use.

Our innovative gull-wing design provides easy access to the engine and control panel and allows a full view of the onboard control system.

The Champion 717cc OHV engine provides 12.5-kilowatts of continuous power on propane and 11-kilowatts on natural gas. This 12.5-kW-rated unit produces 52.1 amps at 240 volts on propane and 45.8 amps at 240 volts on natural gas.

The sound-dampening lining and low-tone muffler reduce noise through a unique baffle system and make this unit the quietest in its class. The residential-friendly 63 dB[A]* has about the same noise level as normal conversation.

The alternator produces less than 5% total harmonic distortion (THD) to ensure safe use with even the most sensitive electronics.

This generator is available for all 50 states, and the switch is UL and cUL listed in the US and Canada. Buy with confidence - Champion Support and our nationwide network of service centers will back your purchase up with a 10-year limited warranty and FREE lifetime technical support.

What’s included

• Battery Jumper Cable
• Enclosure Keys
• Gas Inlet Flex Hose
• Jet Removal Tool
• LPG Idling Metering Jet 120
• LPG Idling Metering Jet 130
• LPG Main Metering Jet 390
• LPG Main Metering Jet 410
• Oil Dray Tray
• Pipe with 3/4 Nut Connector
